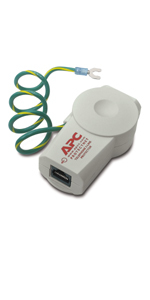

APC ProtectNet für RJ-45(Pin 3-6)- u.RJ-11 (Pin 1-4)

APC ProtectNet – Überspannungsschutz – beige

> Highlights
– Surge Protection and Filtering
– Peak Current Normal Mode 0.20 kAmps
– Peak Current Common Mode 0.15 kAmps
– NM Surge Response Time (ns) 1 ns
– Dataline protection RJ-45 Modem/Fax/DSL protection (four wire dual line)
– Data Lines Protected
– (multi-line only) 3-6 RJ45
– Let Through Voltage Rating < 260
– Physical
– Net weight 0.14 lbs. ( 0.06 kg )
– Maximum height dimensions 4 inches ( 10 cm )
– Maximum width dimensions 1.87 inches ( 4.75 cm )
– Maximum depth dimensions 1.10 inches ( 2.79 cm )
– Shipping Weight 0.30 lbs. ( 0.14 kg )
– Shipping Height 4.10 inches ( 10.41 cm )
– Shipping Width 3.55 inches ( 9.02 cm )
– Shipping Depth 1.15 inches ( 2.92 cm )
– Master Carton Units 144
– Master Carton Weight 18 lbs.
– SCC Codes 10731304000430
– Color Beige
– Environmental
– Operating Environment -15 – 45 °C
– Operating Relative Humidity 0 – 95 %
– Storage Temperature -15 – 45 °C
– Storage Relative Humidity 0 – 95 %
– Conformance
– Approvals CSA, UL 497A, UL Listed
– Standard warranty 10 years repair or replace

> Produkttyp
– USV
– ear-Kategorie (ElektroG): relevant, Kategorie 5: Kleingeräte < 50 cm (alle Seiten), Kleingeräte B2C
